Miniature & Mini Industrial Latches
LatchLock Miniature Duty Series
Explore the LatchLock Miniature Duty Series: compact miniature latches and mini concealed drawhook latches for lightweight panels, small covers, compact enclosures and applications where reliable fastening must fit into limited installation space.
Companies that have purchased our Latchlock tools:
Miniature Latches LLLT Series
The LLLT Series is a compact miniature latch range. The small design makes this series ideal for securing lightweight elements, small panels, covers and technical components where space is limited. Selected versions are also available with a secondary lock for extra security.
Latches
Select the correct LLLT miniature latch depending on material, finish and whether a secondary lock is required.
Strikes
Combine the LLLT miniature latch with the correct matching strike for reliable lightweight closure.
Mini Concealed Latches LLLC Series
The LLLC Series is a compact mini concealed drawhook latch. The handle conceals all interior elements as well as the strike, creating a clean low profile latch design for small panels and compact industrial applications.
Latches
Use the LLLC Series when a compact latch must provide a concealed and clean fastening solution.
Strikes
Select the matching strike for the LLLC mini concealed latch installation.
Technical Information
Installation Dimensions & Load Specifications
Review the installation dimensions and load specifications for the LLLT miniature latch and LLLC mini concealed latch before selecting the correct latch and strike combination.

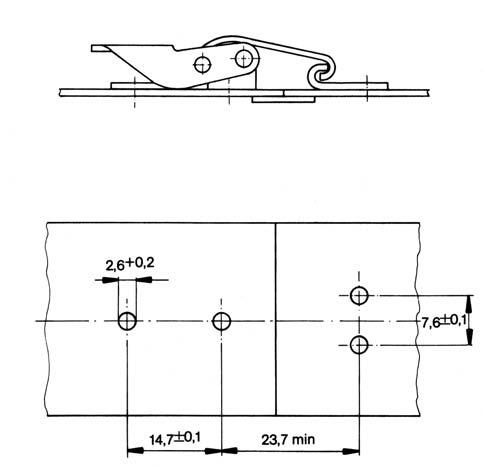

Installation Dimensions

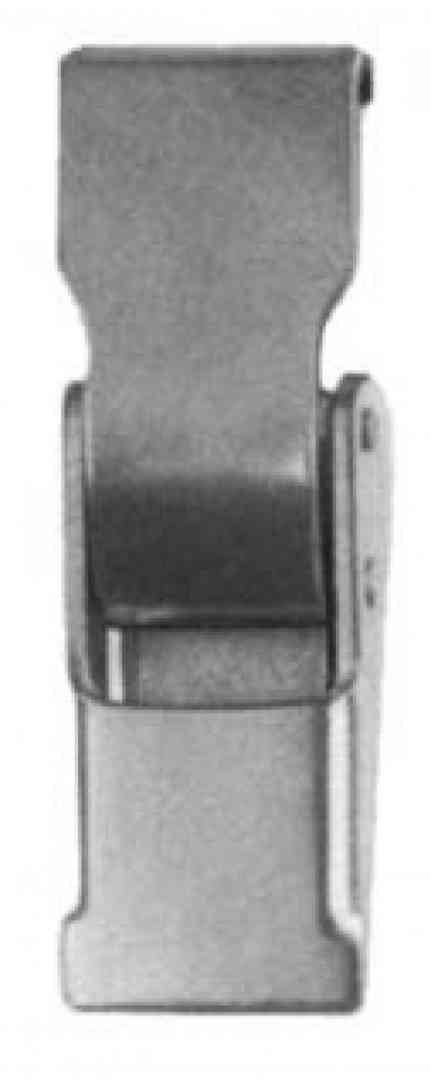

Miniature Latches LLLT Series
The LLLT Series is designed for compact fastening applications where small dimensions and reliable closure are important. This miniature latch series supports light duty use while offering selected versions with secondary locking.
Max. tensile strength
550 N
Working load
310 N
Latch type
Miniature latch for light elements
Security option
Available with secondary lock

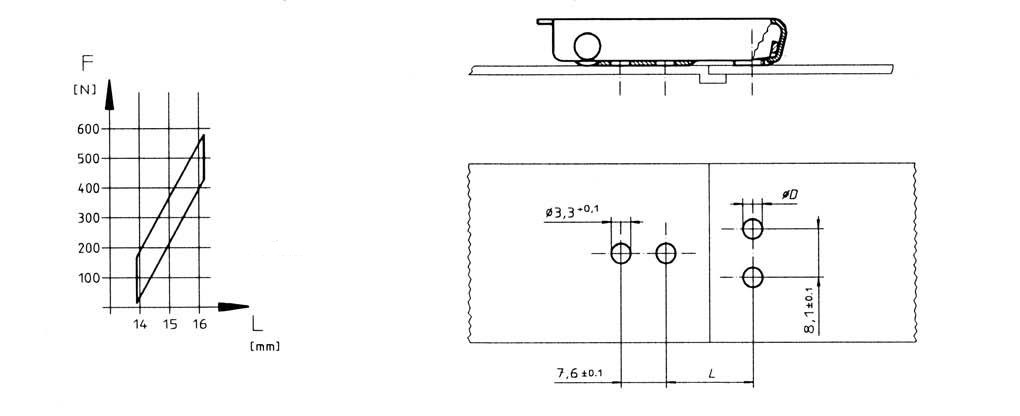

Installation Dimensions
Mini Latches LLLC Series
The LLLC Series is a mini concealed latch with a maximum tensile strength of 220 N. The handle conceals all interior parts and the strike, while the self-compensating spring steel drawhook supports reliable closure in a compact, low profile design.
Max. tensile strength
220 N
Profile
Low profile concealed design
Drawhook
Self-compensating spring steel drawhook
Concealed components
Handle conceals interior parts and strike
