Medium Duty Adjustable Tension Latches

LatchLock Medium Series

Explore the LatchLock Medium Series: a versatile range of medium duty adjustable tension latches, high strength tension latches, open-base and concealed-base fastening solutions, matching strikes and selected versions with a secondary locking mechanism.

Companies that have purchased our Latchlock tools:

MLLA Series medium duty adjustable tension latch

Medium Duty Adjustable Tension Latches MLLA Series

The MLLA Series is a versatile range of medium duty adjustable tension latches. These latches have an open or concealed base and selected versions are available with a secondary locking mechanism for applications where extra closure security is required.

Latches

Choose the correct MLLA latch based on base type, material, mounting method and secondary lock requirement.

MLLA36Z MLLA42Z MLLAWZ MLLA36C MLLAWS MLLACB36Z MLLACB42Z MLLACB36C MLLAX36Z MLLACB36S MLLA36S MLLAYWZ MLLACB42S MLLA42S MLLAXWS MLLAHBX42Z MLLAX42Z MLLAX36C MLLAX36S MLLAX42S MLLACBX42S MLLACBX36C MLLACBX42Z MLLAY42S MLLAY42Z MLLACBX36S MLLAHBX42S MLLAX36ROZ

Strikes

Select a matching strike for the required latch style, installation type and closure configuration.

MS36Z MS42Z MSWZ MS36C MSWS MSG42Z MS36S MS42S MSGWS MSG36S MSG42S MSG51Z MSCM42Z MSCM42S MSWBX43Z MSWB43ZN MPLLALS36-50S MPLLALS42-50S

MLLAH Series medium duty adjustable high strength tension latch

Medium Duty Adjustable High Strength Latches MLLAH Series

The MLLAH Series is a versatile range of medium duty adjustable high strength tension latches. These latches have an open or concealed base and selected versions are available with a secondary locking mechanism.

Latches

Select a high strength adjustable latch for demanding medium duty industrial fastening applications.

MLLAHS51Z MLLAHS51S MLLAHSHB42Z MLLAHSX51Z MLLAHSX51S MLLAHSXWS MLLAHSY51S MLLAHSX51S316 MLLAHSXWS316 MLLAHSHBX42Z MLLAHSRBX50Z MLLAHSRBX50S MLLAHSY51Z

Strikes

Combine the MLLAH latch with the correct strike for high strength fastening and reliable closure.

MSHS51Z MSHS42Z MSHS51S MSG51Z MSG42Z MSG42S MSGWS

Technical Information

Installation Dimensions & Load Specifications

Review the technical installation dimensions for the MLLA Medium Duty Adjustable Series before selecting the correct latch and strike combination.

Installation Dimensions

Medium Latches Adjustable MLLA Series

The MLLA Series has a maximum tensile strength of 2,300 N, an adjustable drawhook and selected versions with secondary lock and HASP.

Max. tensile strength

2,300 N

Drawhook

Adjustable drawhook

Locking options

Available with secondary lock and HASP

Mounting

Type N with holes, Type S without holes

Mounting Types

Type N = with holes for riveting or screwing. Type S = without holes, for welding.

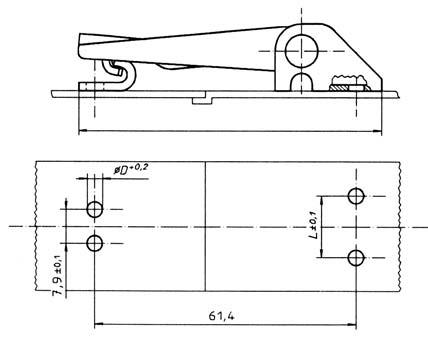

Installation dimensions for MLLA open-base latch and short-type strike

Open-base Latch / Short-type Strike

Select diameter D and distance L in accordance with the strike and latch style.

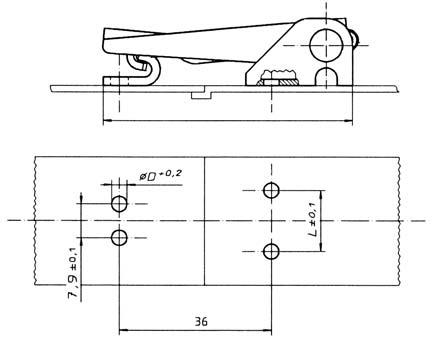

Installation dimensions for MLLA concealed-base tension latch and short-type strike

Concealed-base Tension Latch / Short-type Strike

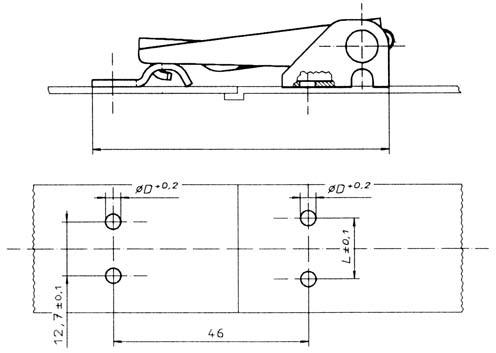

Installation dimensions for MLLA open-base latch and strike with guidance

Open-base Latch / Strike with Guidance

Installation dimensions for MLLA concealed-base latch and strike with guidance

Concealed-base Latch / Strike with Guidance

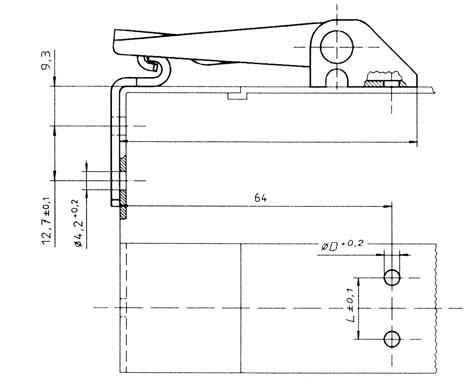

Installation dimensions for MLLA concealed-base latch and corner-mounting strike

Concealed-base Latch / Corner-mounting Strike

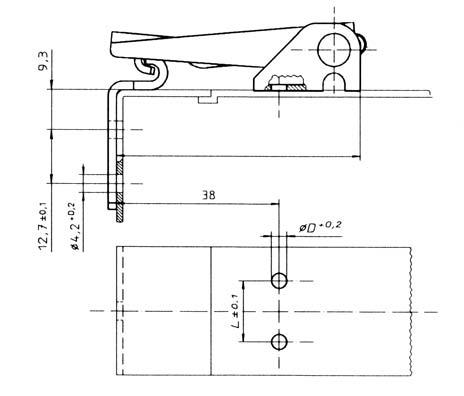

Installation dimensions for MLLA open-base latch and corner-mounting strike

Open-base Latch / Corner-mounting Strike
