Light Duty Draw Latches & Concealed Fastening Solutions

LatchLock Light Duty Series

Explore the LatchLock Light Duty Series: a compact range of draw latches, wire draw hook latches, hooked wire draw latches and concealed high strength latches for reliable fastening in light duty industrial applications. Available with matching strikes and selected versions with a secondary locking mechanism.

Companies that have purchased our Latchlock tools:

Light Duty Draw Latches LLLD Series

The LLLD Series is a versatile range of light duty draw latches with three different draw hook designs: regular draw hook, wire draw hook and hooked wire draw hook. All latch versions are also available with a secondary locking mechanism for applications where extra security and vibration resistance are required.

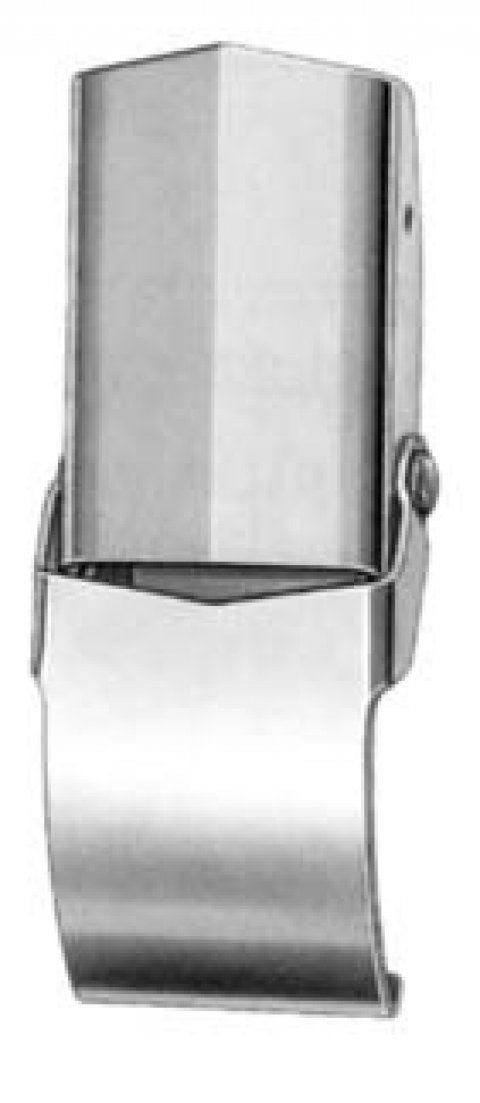

LLLD Series regular draw hook light duty latch

Regular Draw Hook Latches

Standard light duty draw hook latch design for compact fastening applications.

LLLD31Z LLLD31S

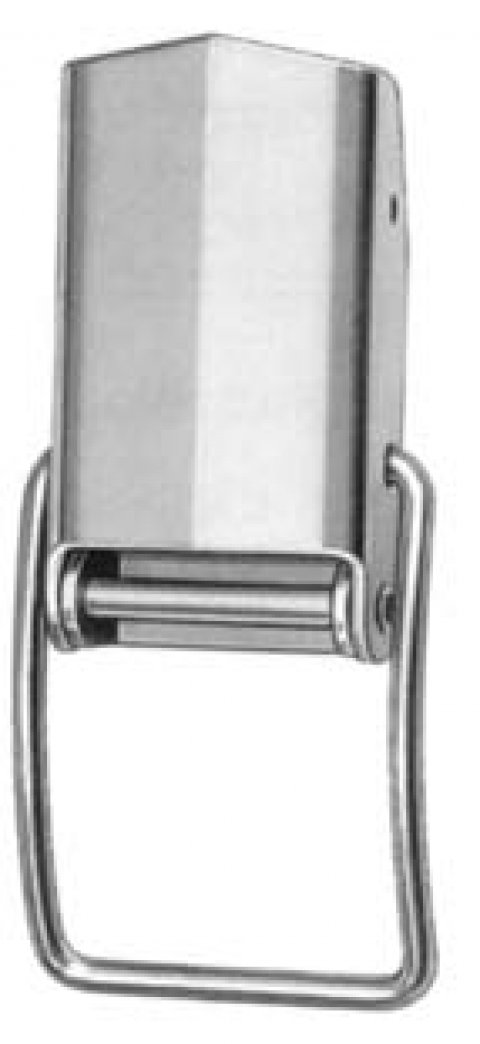

LLLBC Series wire draw hook light duty latch

Wire Draw Hook Latches

Light duty wire draw hook latch design for secure and flexible fastening.

LLLBC31Z LLLBC31S

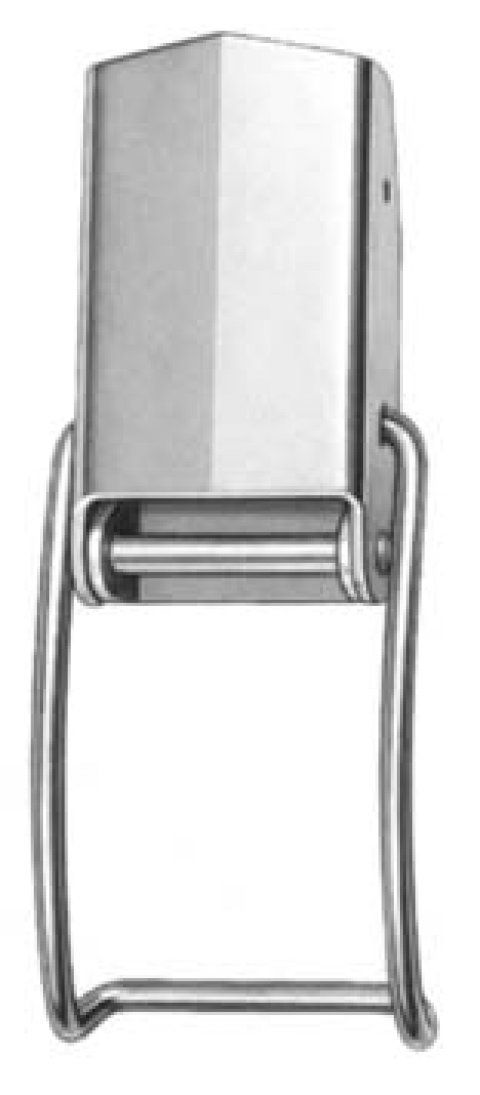

LLLCM Series hooked wire draw hook light duty latch

Hooked Wire Draw Latches

Hooked wire draw hook latch version for light duty industrial fastening.

LLLCM31Z LLLCM31S

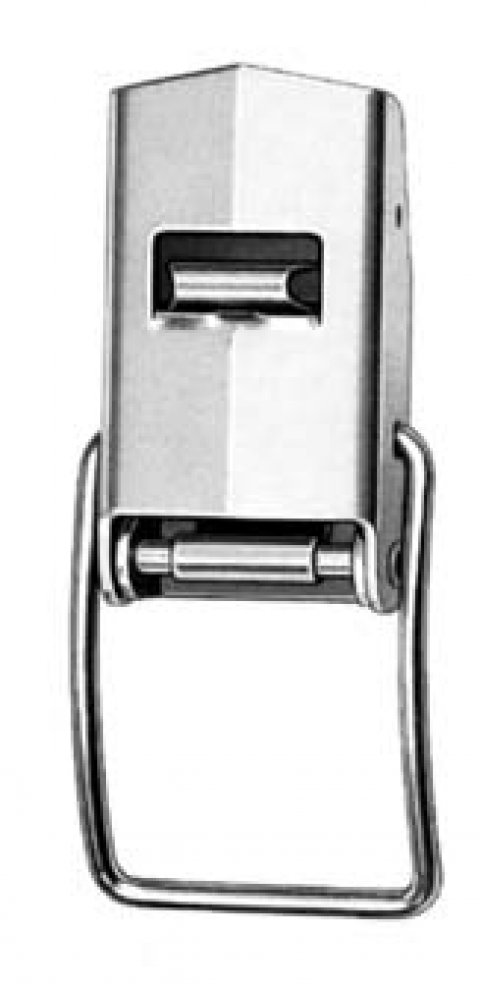

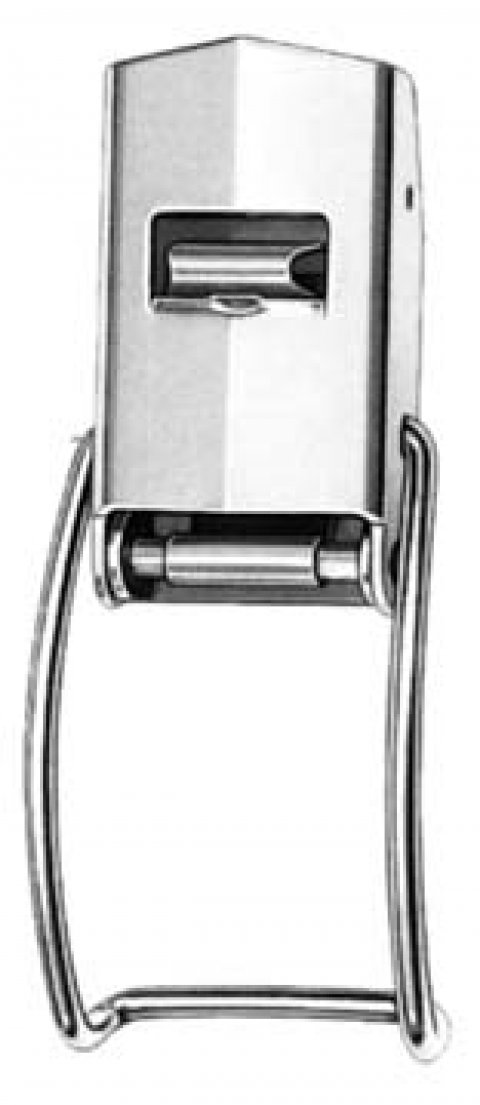

Latches with Secondary Lock

These versions include a secondary lock for applications where the latch must stay more securely closed during movement, vibration or repeated use.

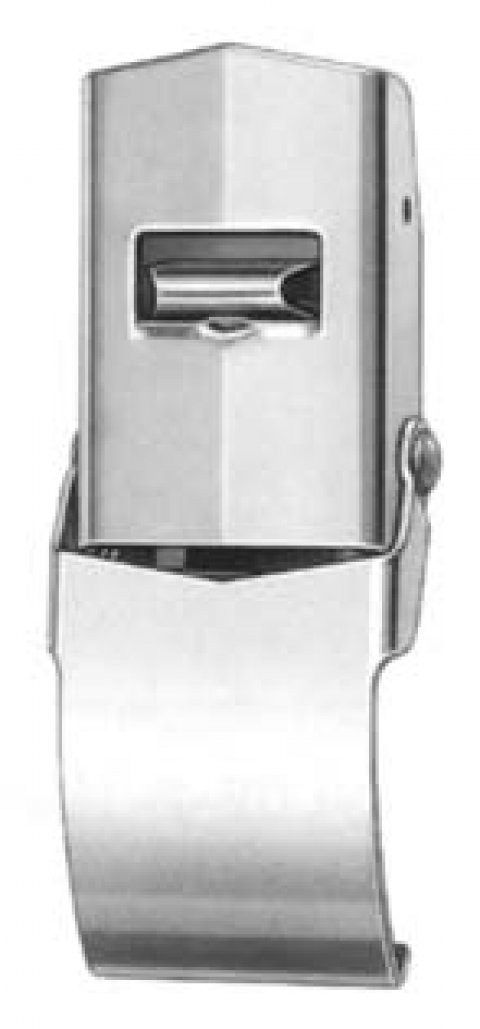

LLLDX Series regular draw hook latch with secondary lock

Matching Strikes

Select the correct strike for the required light duty latch type and installation configuration.

LSD Series strike for LLLD light duty draw hook latches

LSD Series Strikes

LSD31Z LSD31S

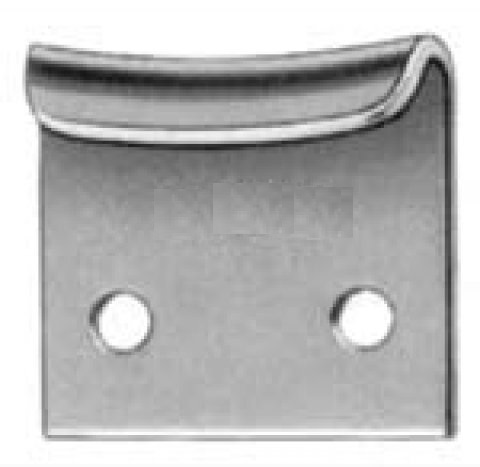

LSBC Series strike for light duty wire draw hook latches

LSBC Series Strikes

LSBC31Z LSBC31S

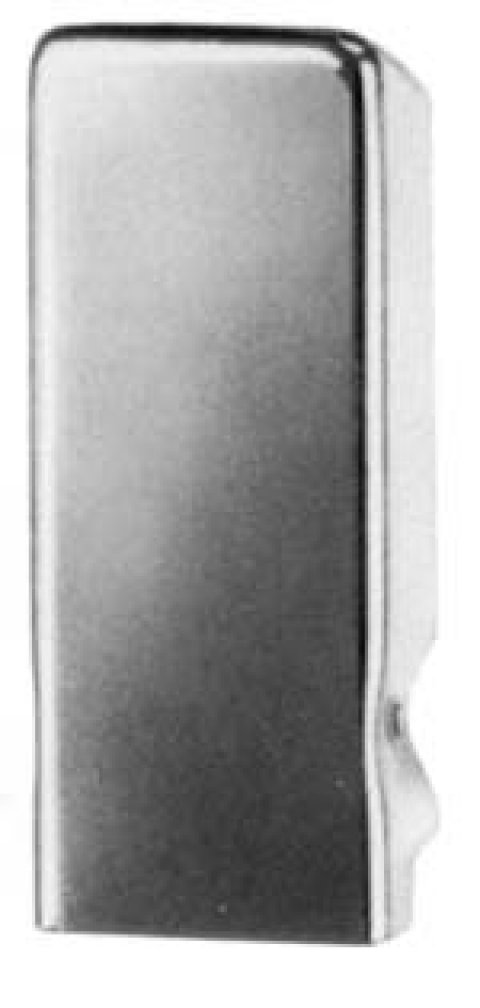

LLLCHS Series light duty concealed high strength latch

Light Duty Concealed High Strength Latches LLLCHS Series

The LLLCHS Series is a light duty concealed high strength drawhook latch. The handle conceals all interior elements as well as the strike, while the self-compensating spring steel drawhook supports reliable fastening in a clean, low profile design.

Latches

LLLCHS25Z LLLCHS32Z LLLCHS25C

Strikes

LSCHS25Z LSCHS32Z

LSCHS Series strike for LLLCHS concealed high strength latches

Technical Information

Installation Dimensions & Load Specifications

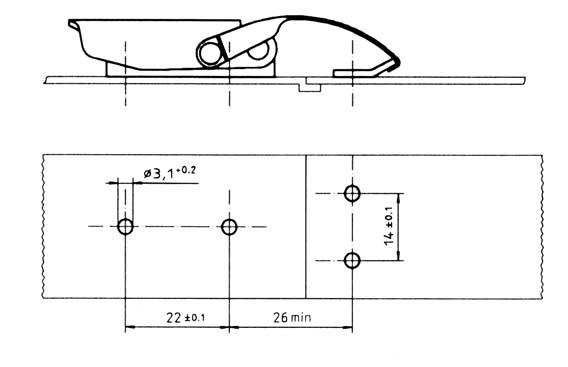

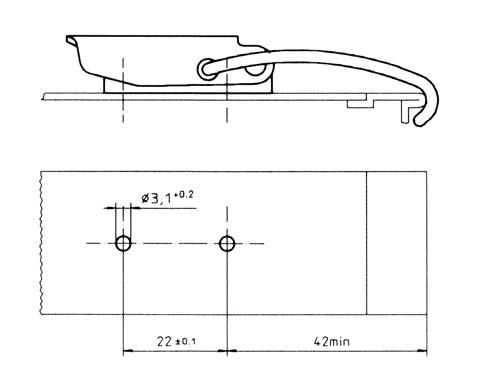

Review the technical installation dimensions for the LLLCHS concealed high strength series and the LLLD light duty latch range before selecting the best latch and strike combination.

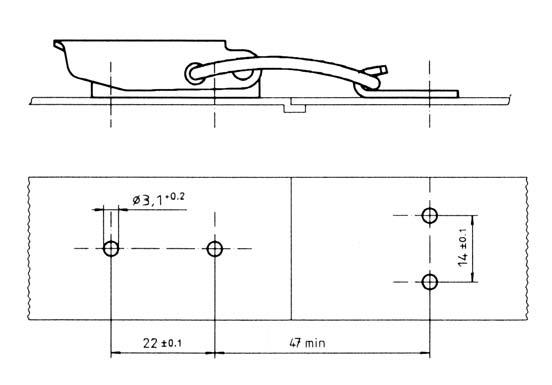

Installation Dimensions

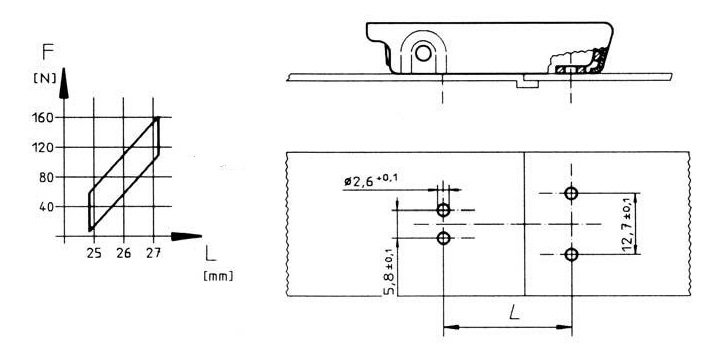

LLLCHS Series Concealed High Strength

The LLLCHS Series is engineered as a concealed high strength latch for light duty applications. Its handle conceals all interior parts and the strike, while the spring steel drawhook provides self-compensating fastening performance.

Max. tensile strength

1,000 N

Profile

Low profile concealed design

Drawhook

Self-compensating spring steel drawhook

Concealed components

Handle conceals interior parts and strike

ASK ABOUT LLLCHS SERIES
